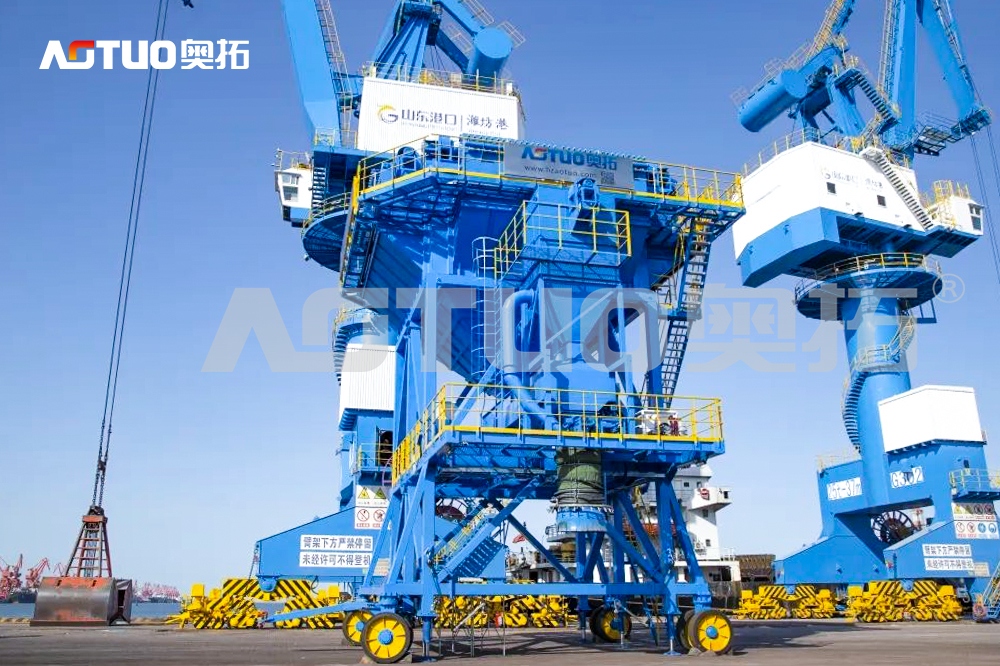

近日，3臺AOTUO奧拓輪胎移動式抑塵料斗裝車機在山東濰坊港順利安裝調試完成。新型智能化環保料斗的投入使用，將有效解決碼頭抓斗卸船（石油焦、水泥熟料）粉塵飛揚的難題，進一步提升碼頭碼頭作業環境。

Recently, three AOTUO tire mobile dustless environmental protection hopper loaders were successfully installed and commissioned in Weifang port, Shandong Province. The use of the new intelligent environmental protection hopper will effectively solve the problem of dust flying from the port grab ship unloading (petroleum coke, cement clinker) and improve the working environment of the port.

該3臺裝備是AOTUO自主研制的ATZL400型輪胎移動式抑塵料斗智能裝車系統，單臺裝車能力400t/h，采用“受料+收塵+計量”一體化結構設計，應濰坊港無人理貨技術需求，系統還配置了人工智能AI裝車輔助系統。經濰坊港工程師團隊與AOTUO奧拓的多次對接會議、視頻會議、優化方案設計，最終確定實施方案。實物重載試車結果表明實施方案的科學性，其良好的環保性與高度自動化理貨作業，獲得了港方的好評。

These three sets of equipment are the intelligent loading system of ATZL400 type tire mobile dustless environmental protection hopper which independently developed by AOTUO,The loading capacity of a single machine is 400t/h, and adopted integrated structural design of "receiving + dust collection + metering" . According to the technical requirements of unmanned tally in Weifang port, the system is also equipped with AI loading auxiliary system.After many meetings, video conferences and optimization design scheme between Weifang Port Engineer team and AOTUO team, the scheme was finally determined.The results of the heavy load test show that the scheme is scientific, and its good environmental protection and highly automated tally operation have been highly praised by the Weifang port.

這也是AOTUO奧拓首次采用BOO模式為顧客提供裝卸服務，即顧客無需支付貨款，只需按噸支付接卸量流量費，就可獲得AOTUO奧拓技術裝備的各項功能與服務。AOTUO奧拓今后將在全國推出這種創新型的合作模式，即可解決央企、國企決策周期長而應用又十分迫切的矛盾，也為部分顧客優化資金的資源配置，緩解企業短期流動性。

This is the first time that AOTUO adopts BOO mode to provide port loading and unloading services for customers,that is, customers do not need to pay the payment for goods, but only need to pay the unloading volume flow fee by ton, so that they can obtain various functions and services of AOTUO.AOTUO will launch this innovative cooperation model nationwide in the future, which can solve the contradiction between long decision-making cycle with urgent application of central enterprises and state-owned enterprises ,and also optimize the resource distribute of funds for some customers, and alleviate the short-term liquidity of enterprises.

產品亮點：

Features of a product

一、環保抑塵：Environmental protection and Dust suppression

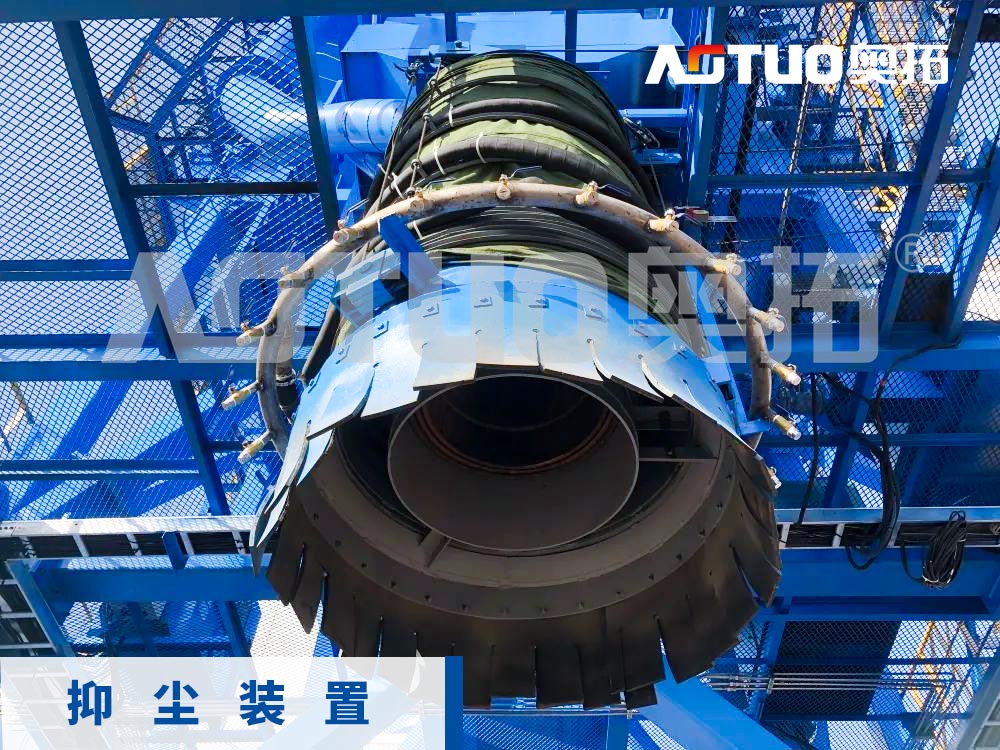

料斗斗體部分由內外兩層錐斗組成，錐斗之間形成環形風道，既能收塵又能回灰；

The hopper body is composed of inner and outer conical buckets, and an annular air duct is formed between the conical buckets, which can not only collect dust but also return ash;

料斗直段為除塵器內壁圍合而成的方箱，四壁有長孔式收塵口，使粉塵氣體均勻進入除塵器，達到最大限度減少揚塵的效果。

The straight section of the hopper is a square box surrounded by the inner wall of the dust collector, and there are long hole dust collector on the four walls to make the dust enter the dust collector evenly, so as to achieve the effect of minimizing dust.

二、人工智能AI裝車輔助系統AI loading auxiliary system:：

系統帶有AOTUO奧拓自主研發及業內首創的人工智能AI裝車輔助系統，可實現高度信息化條件下的全過程無人操作：

The system is equipped with the AI loading auxiliary system which independently developed and pioneered in the industry by AOTUO , realized unmanned operation in the whole process under the condition of high informatization:

① 貨車司機可通過掃描二維碼，連接碼頭無人理貨系統數據庫，確定所卸貨物種類，船型等關鍵作業信息。在手機頁面輸入當前所需裝車量后，一鍵啟動設備，皮帶計量裝置即可根據所需裝車量自動精確運轉放料。

The truck driver connects the dock unmanned tally system database by scanning the QR code to determine the type of goods unloaded, ship type and other key operation information. After inputting the current required loading amount on the mobile phone page, the equipment can be started with one touch, and the belt metering device can automatically and accurately operate and discharge materials according to the required loading amount.

② 通過AI攝像頭的視覺信號以及AI控制器的人工智能算法模型，當裝車物料達到一定的裝載高度后，由AI控制器輸出信號指揮紅綠燈提示司機移車，或者直接控制無人駕駛車輛進行移車，投料裝置可根據裝車高度自動控制升降，至物料裝至司機所輸入重量時設備自動停止運行。

According to the visual signal of the AI camera and the artificial intelligence algorithm model of the AI controller, when the loaded materials reach a certain loading height, the AI controller outputs a signal to command the traffic light to prompt the driver to move the vehicle, or directly controls the unmanned vehicles to move it,the feeding device can automatically control the lifting and lowering according to the loading height, and the equipment will automatically stop running when the materials are loaded to the weight input by the driver.

③ 裝車完成后，將裝車信息自動回傳給碼頭無人理貨數據庫中，并自動生成生產報表。

After loading, the loading information will be automatically returned to the unmanned tally database of the port, and the production report will be automatically generated.
